To speed read operations, sometimes more sensors are grouped in centralization panels from which, by connecting with portable reading unit via a supplied cable with the simple use of a channel selector, you can display data from all installed sensors.

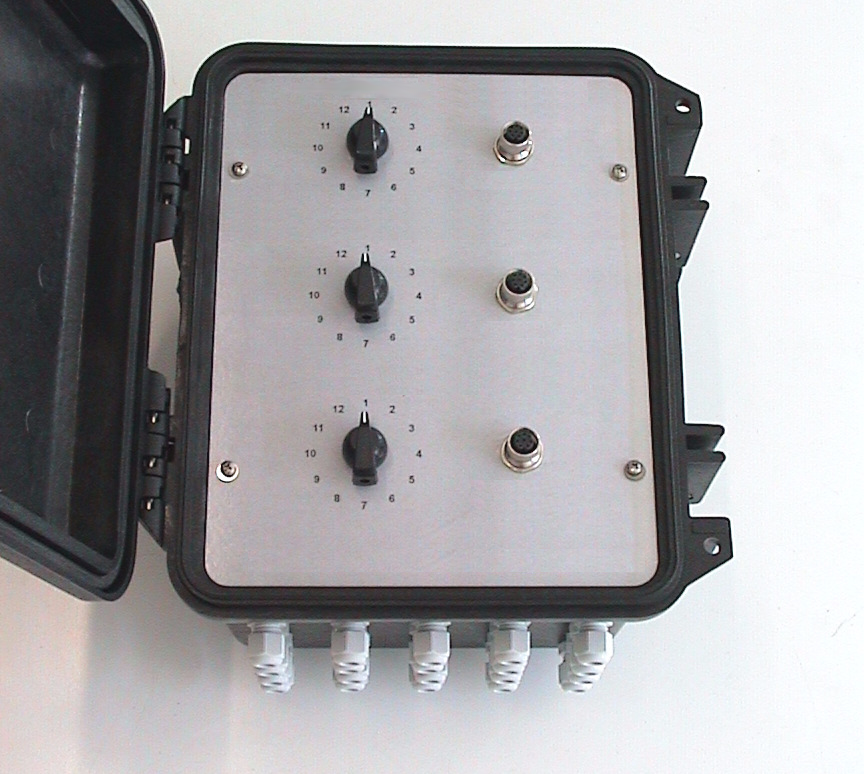

The PAN-CENT insturment can collect up to 12, 4-wire connections. Each instrument is equipped with a multi-pole connector and a channel selector. Possibility of multiple connections  of 12, for systems with 24, 36 or more channels.


Zoom Click to enlarge image

Accessories PAN-CENT Accessories PAN-CENT Schema Accessories PAN-CENT Montaggio
Modell Feature

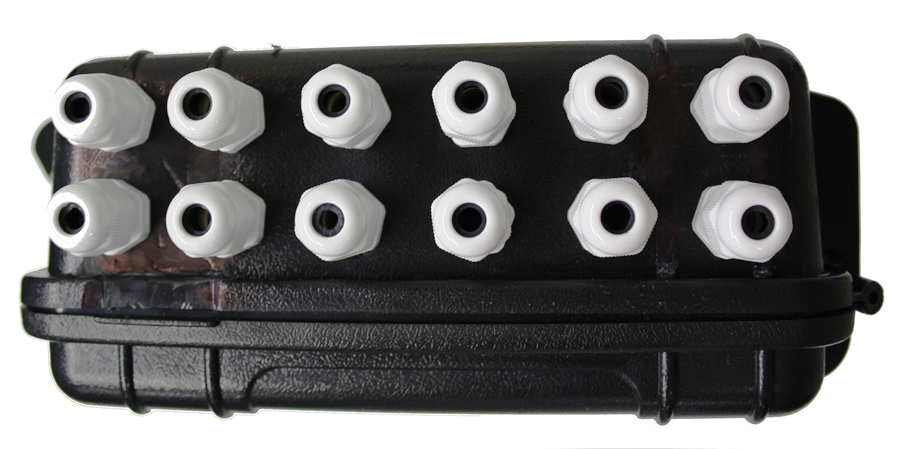

PAN-CENT/6A 6 output channels with cable gland
PAN-CENT/12A 12 output channels with cable gland
PAN-CENT/24A 24 output channels with cable gland
PAN-CENT/36A 36 output channels with cable gland
PAN-CENT/6B 6 channel cable jack
PAN-CENT/12B 12 channel cable jack
PAN-CENT/24B 24 channel cable jack
PAN-CENT/36B 36 channel cable jack
For the complete and latest technical specifications, please refer to the technical data sheet which can be downloaded here:
Download PDF

MOUNTING OF THE LOAD CELL

General precautions to be followed in the installation and assembly of load cells:

  • Follow the direction of application of force on the load cell
  • Do not exceed the limits of the temperature as indicated in the data sheet
  • Do not remove labels from the load cell
  • Adequately protect the cables with sleeves or channels
  • Carry out on each load cell a ground connection with suitable cable, shunt on mounting accessories
  • Do not carry out any welding on the mechanical structure after mounting the load cell
  • Avoid or reduce to a minimum level any mechanical constraints between the rigid structure and the weighing structure to avoid error in weighing and return to zero
  • In case of vibration or dynamic loads product the load cells with puffers / shock absorbers
  • Protect load cell from any dust accumulation with any appropriate means
